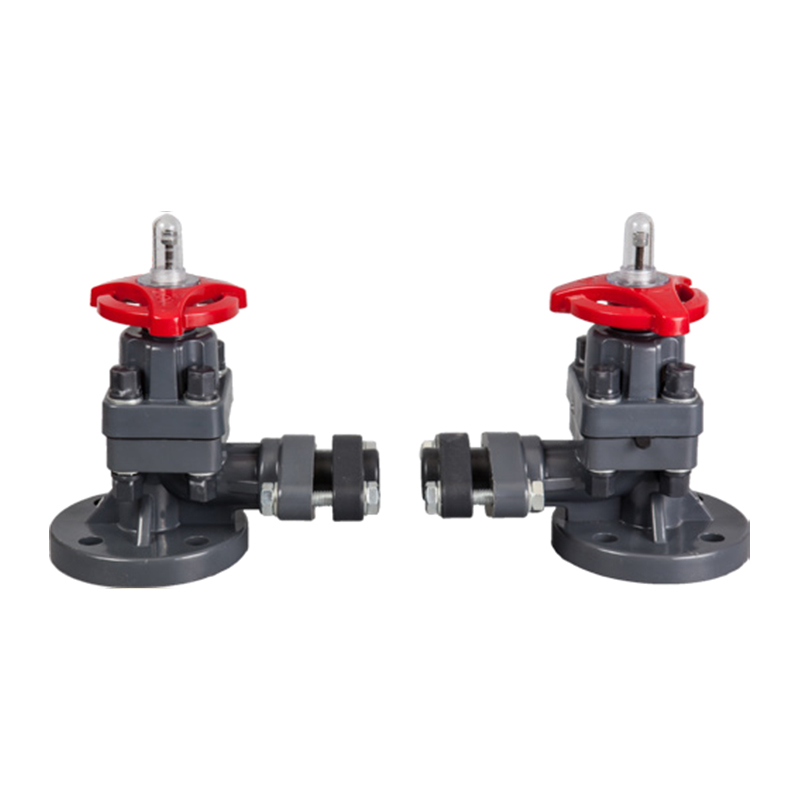

Features：
● Compact structure, high cost performance.
● The gauge pipe can easily be installed by inserting the pipe and tightening the nut.

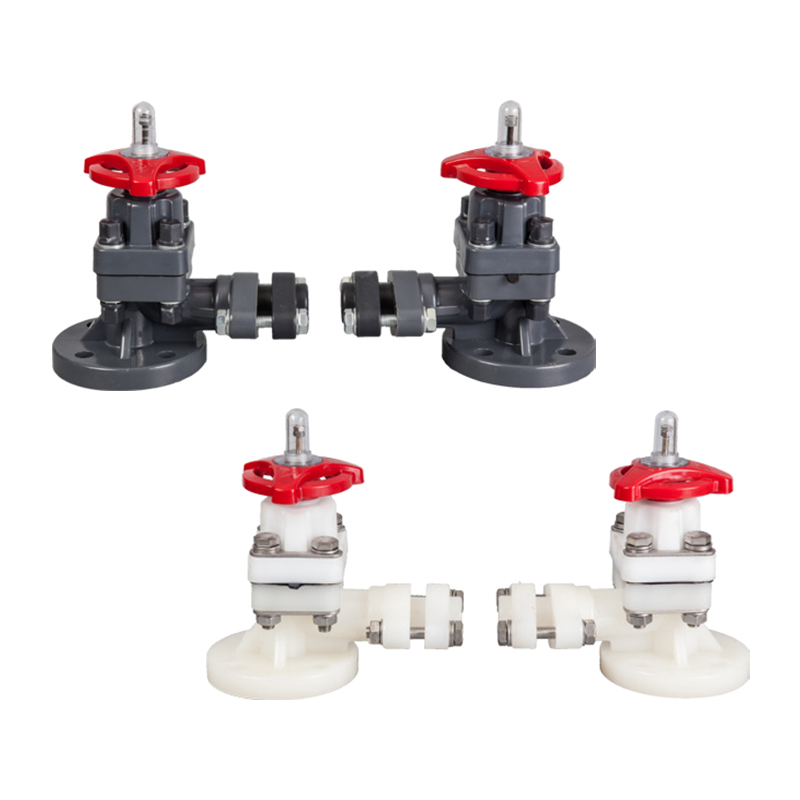

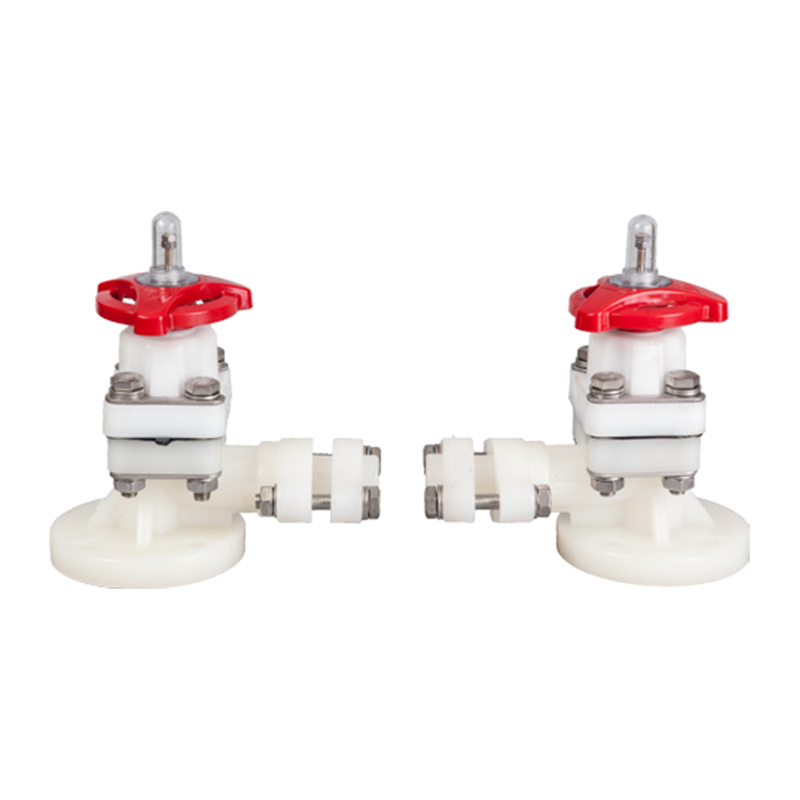

● Cut-off type guage is EPDM+PTFE seal, diaphragm type guage can choose EPDM, FPM, PTFE, PFA, F46 diaphragm.

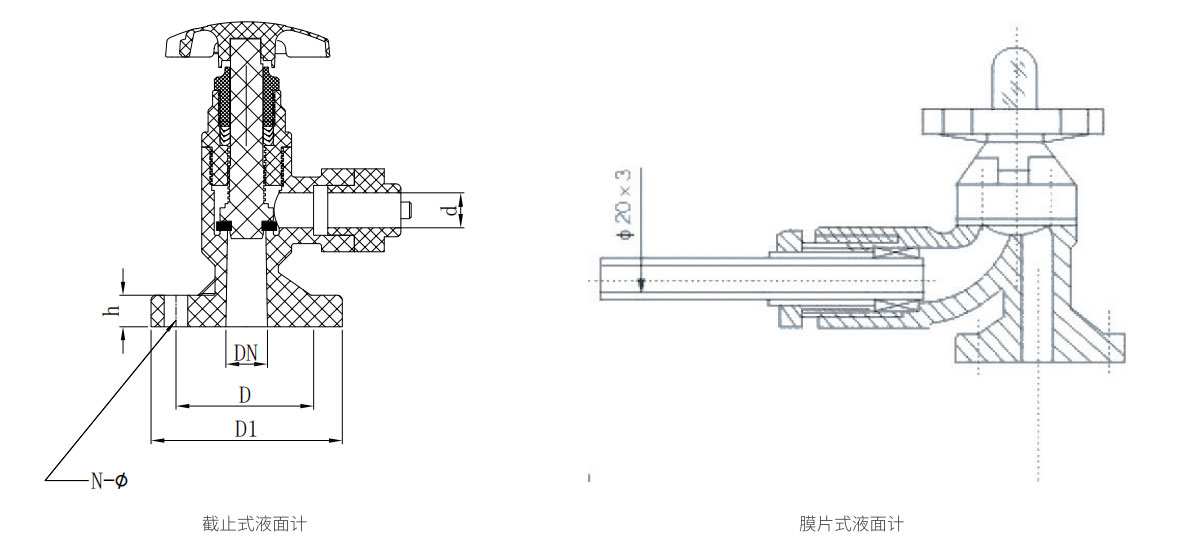

Dimensions Table（mm）
|
DN |
D1 |
D |
d |
b |
n |
φ |
Working pressure(Mpa) |
||||||
|
DIN |
JIS |
ANSI |
GB/DIN |
JIS |
ANSI |
GB/DIN |
JIS |
ANSI |
|||||
|
15 |
95 |
65 |
70 |
60 |
20 |
14 |
4 |
4 |
4 |
14 |
15 |
16 |
0.6 |
|
20 |
105 |
75 |
75 |
70 |
20 |
16 |
4 |
4 |
4 |
14 |
15 |
16 |
0.6 |
|
25 |
115 |
85 |
90 |
79 |
20 |
16 |
4 |
4 |
4 |
14 |
15 |
16 |
0.6 |
|
32 |
135 |
100 |
100 |
89 |
20 |
16 |
4 |
4 |
4 |
18 |
19 |
16 |
0.6 |
|
40 |
145 |
110 |
105 |
98 |
20 |
16 |
4 |
4 |
4 |
18 |
19 |
16 |
0.6 |
|
50 |
160 |
125 |
120 |
121 |
20 |
18 |
4 |
4 |
4 |
18 |
19 |
9 |
0.6 |
