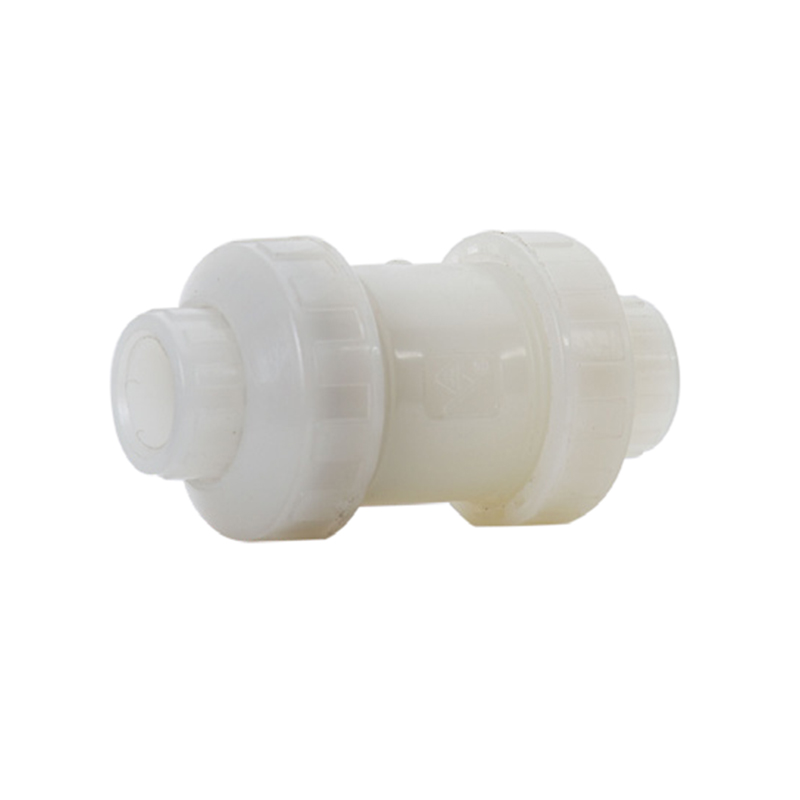

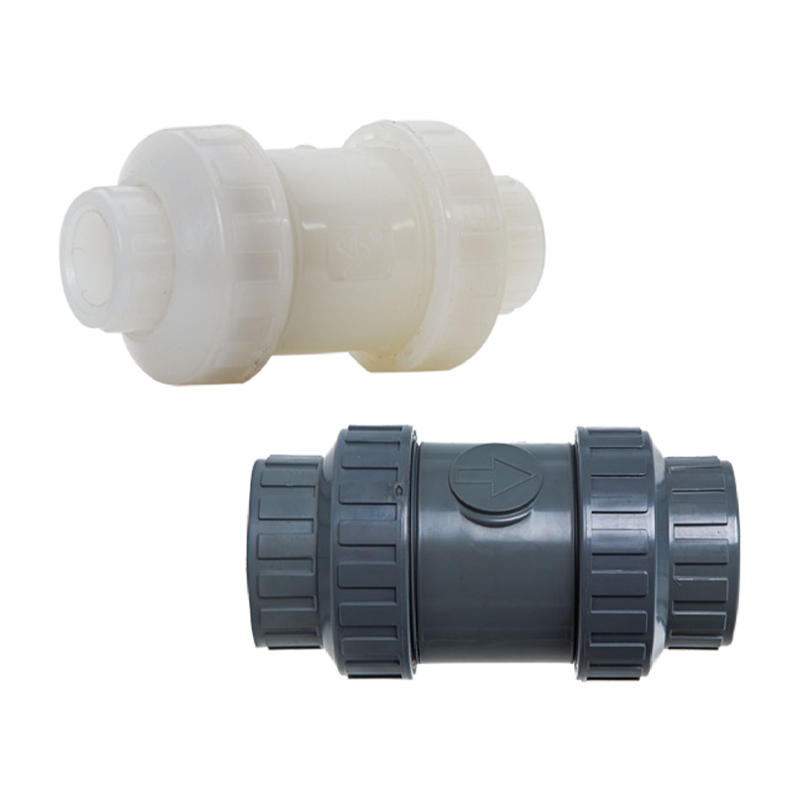

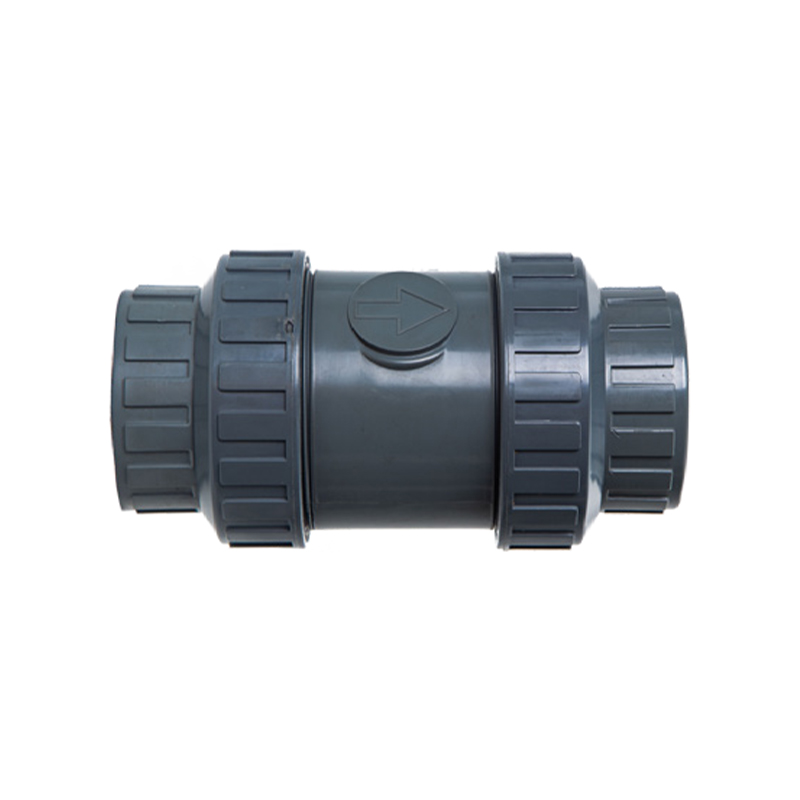

Features：
● The BALL CHECK are so compact and light that they can be installed in a limited space. They are also easy to maintain, because of minimal internal parts.
● Check valves in pipelines are subject to water hammer effects and vibrations, which can loosen and damage the threads of the live connection. For this reason it is not recommended to choose a live connection for high temperatures, strong corrosion and other demanding conditions.

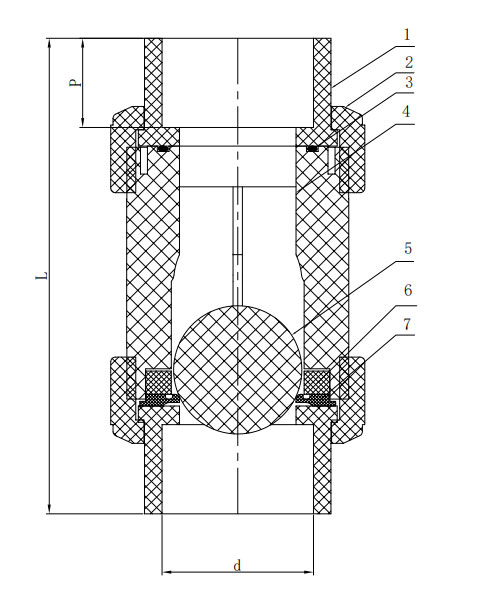

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Joints |
PPH,UPVC,CPVC,PVDF |
|
2 |
Union nut |
PPH,UPVC,CPVC,PVDF |
|
3 |
O-ring |
EPDM,FPM |
|
4 |
Body |
PPH,UPVC,CPVC,PVDF |
|
5 |
Ball |
PPH,UPVC,CPVC,PVDF,PTFE |
|
6 |
Inside plug |
PPH,UPVC,CPVC,PVDF |
|
7 |
Gasket |
PPH,UPVC,CPVC,PVDF |
Dimensions Table（mm）
|
DN |
d |
L |
P |
Working pressure(Mpa) |
Minimum back pressure(Mpa) |
|||||
|
Socket end |
Thread end |
|||||||||
|
HG/DIN |
JIS |
ANSI |
HG/DIN |
JIS |
ANSI |
|||||
|
15 |
20 |
22 |
21.3 |
Rc1/2 |
PT1/2 |
NPT1/2 |
100 |
17 |
1.0 |
0.04 |
|
20 |
25 |
26 |
26.7 |
Rc3/4 |
PT3/4 |
NPT3/4 |
120 |
24 |
1.0 |
0.04 |
|
25 |
32 |
32 |
33.4 |
Rcl |
PT1 |
NPT1 |
130 |
28 |
1.0 |
0.04 |
|
32 |
40 |
38 |
42.2 |
Rc1-1/4 |
PT1-1/4 |
NPT1-1/4 |
153 |
29 |
1.0 |
0.04 |
|
40 |
50 |
48 |
48.3 |
Rc1-1/2 |
PT1-1/2 |
NPT1-1/2 |
181 |
35 |
1.0 |
0.04 |
|
50 |
63 |
60 |
60.3 |
Rc2 |
PT2 |
NPT2 |
203 |
39 |
1.0 |
0.04 |
