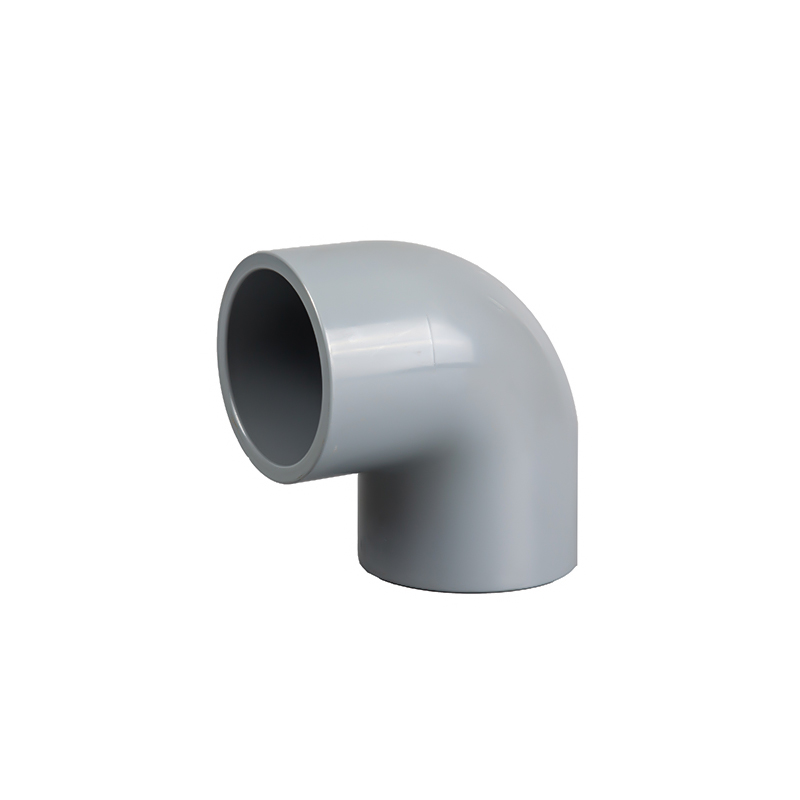

CPVC RADIUS 90° ELBOW

Product Name: 90 Degree Elbow
Connection: Welding
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: Pn10
Material: Plastic-CPVC
Technics: Pushing
Certification: GB
Trademark: Baodi
Specification: ANSI, DIN, JIS, GB
Origin: China
Size: DN15-400
Wall Thickness: STD
Color: White,Grey,Red
Technics: Injection
Sizes: 1/2"-12"
Connection: Socket/thread, fusion, butt welding
Working temperature:CPVC- ~40ºC-+95ºC

CPVC RADIUS 90° ELBOW Details

CPVC、UPVC、PVDF、PPH 90° Elbow

The data are updated. Please contact our sales for more details

DN(mm) Nominal diameter	DN(mm) Nominal outer diameter	Figure size (mm)
DN(mm) Nominal diameter	DN(mm) Nominal outer diameter	D	d	L	Z
15	20	26	20	28	16
20	25	32	25	34	20
25	32	40	32	41	22
32	40	50	40	49	27
40	50	61	50	60	31
50	63	75	63	76	38
65	75	88	75	83	44
80	90	105	90	97	51
100	110	127	110	117	61
125	140	160	140	150	75
150	160	185	160	172	90
200	225	253	225	230	110
250	280	310	280	280	140
300	315	350	315	340	150
350	355	395	355	367	182
400	400	433	400	413	205
*450	45 0	495	450	480	231
*500	500	540	500	535	256
*600	630	678	630	670	321

◎

DN32

◎

DN40

◎

DN50

◎

DN65

◎

DN80

◎

DN100

◎

DN125

◎

DN150

◎

DN200

◎

DN250

◎

DN300

◎

DN350

◎

DN400

◎

○

◎

DN450

◎

○

◎

DN500

◎

○

◎

DN600

○

DN700

○

Reducing tee (DN)	40-15	50-25	65-32	80-32	100-25	125-40	200-150	350-150
	40-20	50-32	65-40	80-40	100-32	125-80	250-65	350-200
	40-25	50-40	65-50	80-50	100-40	125-100	250-100
	40-32	65-15	80-15	80-65	100-50	150-80	250-150
	50-15	65-20	80-20	100-15	100-65	150-100	300-100
	50-20	65-25	80-25	100-20	100-80	200-100	300-200
Reducer (DN)	20-15	40-20	50-40	80-15	100-15	100-80	150-125	300-150
	25-15	40-25	65-15	80-20	100-20	125-50	200-100	300-200
	25-20	40-32	65-20	80-25	100-25	125-80	200-125	300-250
	32-15	50-15	65-25	80-32	100-32	125-100	200-150	350×150
	32-20	50-20	65-32	80-40	100-40	150-50	250-100	350×250
	32-25	50-25	65-40	80-50	100-50	150-80	250-150	350×300
	40-15	50-32	65-50	80-65	100-65	150-100	250-200	500×200
Bushing (DN)	20-15	32-15	50-25	80-65	125-100	200-150	300-250
	25-15	32-25	50-40	100-50	150-100	250-150
	25-20	40-32	65-50	100-80	150-125	250-200
Saddle joint (DN)	100-50	125-50	150-50	350-50

The size of the pipe fittings is based on the corresponding standard, For details, please consult the Baodi piping system manual or consult our company

FRP composite pipe standard： HG-3731

CPVC pipe fittings standard number： GB/T 18998.3-2003

UPVC pipe fittings standard number： GB/T 4219.2-2008

Flange connection standard： HG 20592 PN10 Flange

○： Secondary forming

◎： One-time forming
