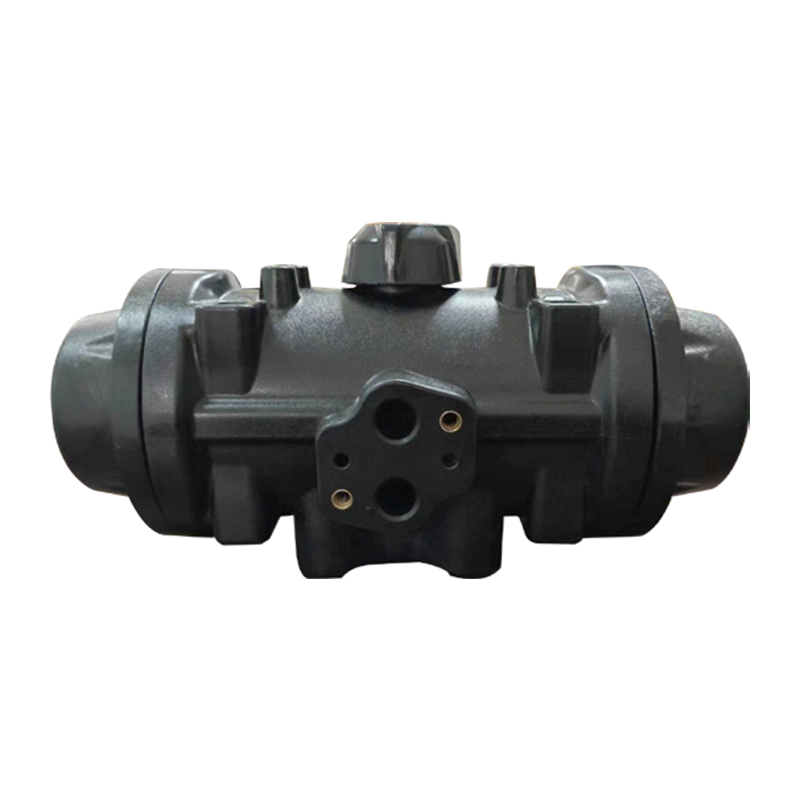

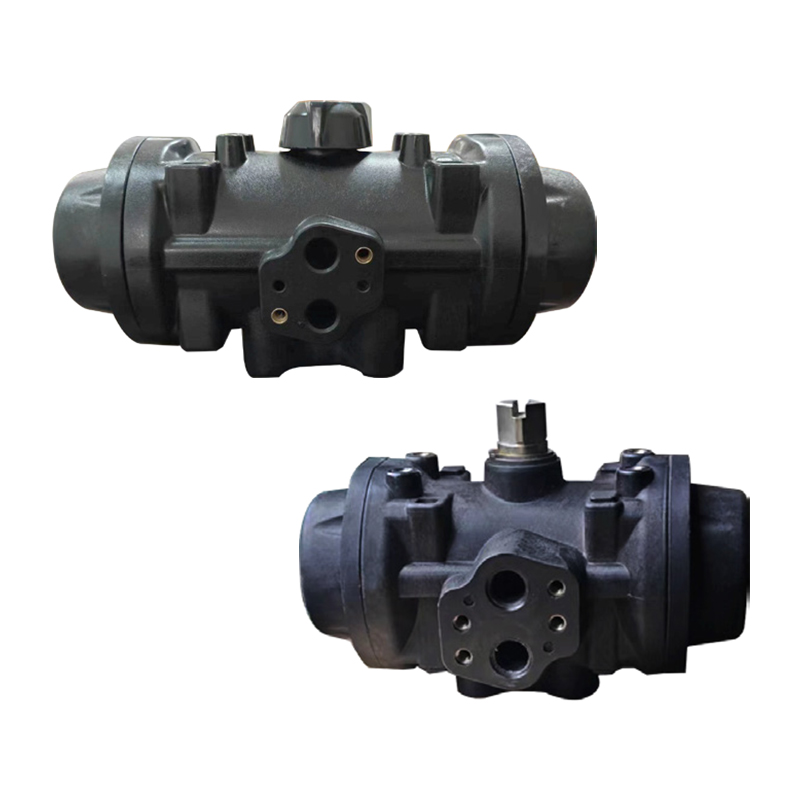

Features：
● Corrosion-resistant plastic body, resistant to various types of environmental corrosion.
● Lightweight and easy to install, 1/2 the weight of an aluminium cylinder and 1/5 the weight of a stainless steel cylinder.
● Connection dimensions in accordance with ISO 5211, NAMUR standards.
Double Acting Actor Output Torque (nm)
|
Type |
Air Pressure (BAR) |
|||||
|
3 |
4 |
5 |
5.5 |
6 |
7 |
|
|
PLT05DA |
13.3 |
18.3 |
23.4 |
26 |
28.5 |
33.6 |
|
PLT07DA |
32.9 |
45.6 |
58.3 |
65 |
71 |
83.7 |
|
PLT09DA |
77.7 |
107 |
436.3 |
150.9 |
165.4 |
194.8 |
|
Type |
Opening and closing time (s) |
|
PLT05DA |
0.4 |
|
PLT07DA |
0.5 |
|
PLT09DA |
0.6 |
|
PLT05SR |
0.5 |
|
PLT07SR |
0.6 |
|
PLTO9SR |
0.8 |
Single Acting Actor Output Torque (nm)
|
Air Pressure (BAR) |
4 |
5 |
6 |
7 |
Spring Torque |
||||||
|
Type |
Spring Qty |
Start |
End |
Start |
End |
Start |
End |
Start |
End |
Start |
End |
|
PLTO5SR |
10 |
7.6 |
2.5 |
12.7 |
7.6 |
17.8 |
12.7 |
22.9 |
17.8 |
15.8 |
10.7 |
|
8 |
9.6 |
5.7 |
14.7 |
10.8 |
19.8 |
15.9 |
24.9 |
21 |
12.6 |
8.7 |
|
|
PLT07SR |
10 |
19.9 |
7.6 |
32.6 |
20.3 |
45.3 |
33 |
58 |
45.7 |
38 |
25.7 |
|
8 |
25.1 |
15.2 |
37.8 |
27.9 |
50.5 |
40.6 |
63.2 |
53.3 |
30.4 |
20.5 |
|
|
PLT09SR |
10 |
52.2 |
19.8 |
81.5 |
49.1 |
110.7 |
78.3 |
140 |
107.6 |
87.2 |
54.8 |
|
8 |
63.1 |
37.2 |
92.4 |
66.5 |
121.6 |
95.7 |
150.9 |
125 |
69.8 |
43.9 |
|
Dimensions Table（mm）
|
Type |
Z |
A |
E |
M |
N |
I |
J |
|
PLT05 |
161 |
85 |
102 |
14 |
16 |
50 |
\ |
|
PLT07 |
230 |
104 |
124 |
17 |
19 |
50 |
70.0 |
|
PLT09 |
313 |
122 |
147 |
22 |
20 |
70 |
\ |
