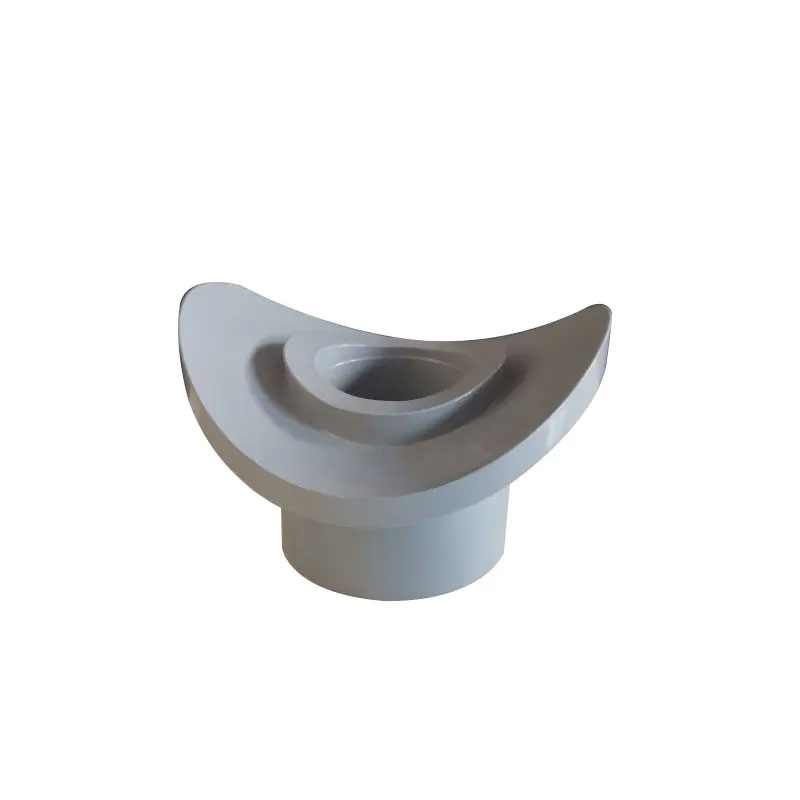

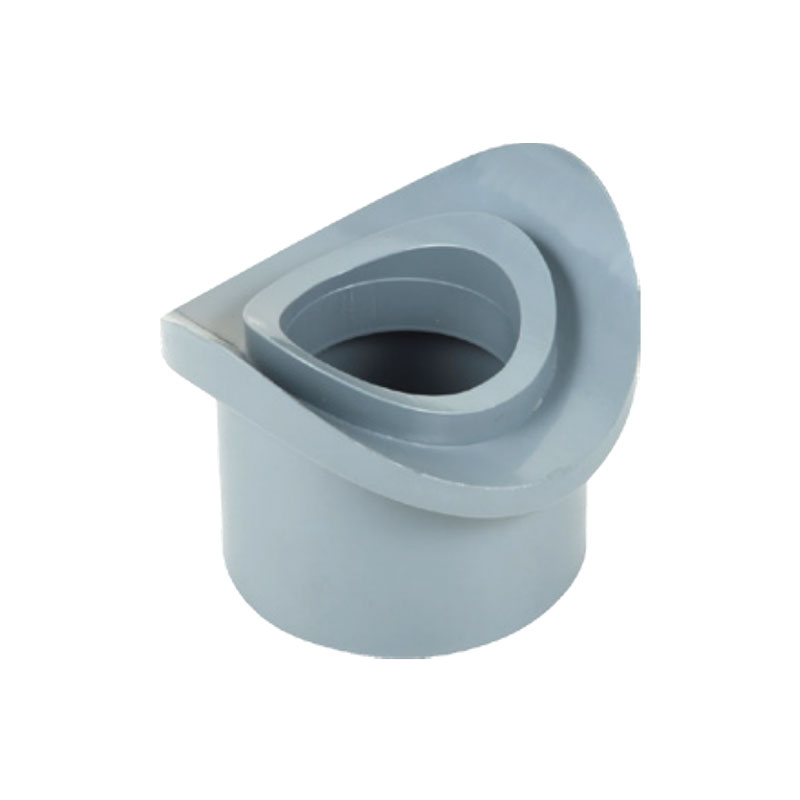

Saddle joint CPVC
  • Saddle joint CPVC
  • Saddle joint CPVC

Saddle joint CPVC

Contact Us

Saddle joint CPVC Details

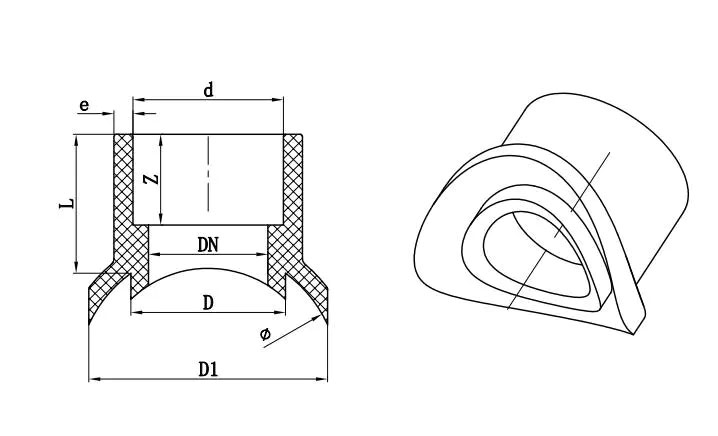

CPVC saddle joint main connection dimensions

Data is being updated. Please contact our sales for more details!

Nominal diameter DN (mm)

 Size(mm)
d D1 D Z e ∅ L
DN100-DN50 63.3 100 65 38 8 110 48
DN125-DN50 63.3 125 70 38 8 140 50
DN150-DN50 63.3 130 70 38 8 160 51
DN350-DN50 63.3 170 70 38 8 355 61

90°Elbow

Coupling

Tee

45°Elbow

Flange

Van stone flange

End cap

Blind flange

Cross

Union

male coupling

Y Tee

DN15

◎

◎

◎

◎

◎

◎

◎

◎

DN20

◎

◎

◎

◎

◎

◎

◎

◎

DN25

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN32

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN40

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN50

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN65

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN80

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN100

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN125

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN150

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN200

◎

◎

◎

◎

◎

◎

◎

◎

◎

DN250

◎

◎

◎

◎

◎

◎

◎

DN300

◎

◎

◎

◎

◎

◎

◎

DN350

◎

◎

◎

◎

◎

◎

◎

DN400

◎

◎

○

○

◎

◎

DN450

◎

○

○

○

◎

◎

DN500

◎

○

○

○

◎

◎

DN600

○

○

○

○

○

○

DN700

○

○

○

○

○

○


Reducing tee (DN)

40-15

50-25

65-32

80-32

100-25

125-40

200-150

350-150

40-20

50-32

65-40

80-40

100-32

125-80

250-65

350-200

40-25

50-40

65-50

80-50

100-40

125-100

250-100

40-32

65-15

80-15

80-65

100-50

150-80

250-150

50-15

65-20

80-20

100-15

100-65

150-100

300-100

50-20

65-25

80-25

100-20

100-80

200-100

300-200

Reducer (DN)

20-15

40-20

50-40

80-15

100-15

100-80

150-125

300-150

25-15

40-25

65-15

80-20

100-20

125-50

200-100

300-200

25-20

40-32

65-20

80-25

100-25

125-80

200-125

300-250

32-15

50-15

65-25

80-32

100-32

125-100

200-150

350×150

32-20

50-20

65-32

80-40

100-40

150-50

250-100

350×250

32-25

50-25

65-40

80-50

100-50

150-80

250-150

350×300

40-15

50-32

65-50

80-65

100-65

150-100

250-200

500×200

Bushing (DN)

20-15

32-15

50-25

80-65

125-100

200-150

300-250

25-15

32-25

50-40

100-50

150-100

250-150

25-20

40-32

65-50

100-80

150-125

250-200

 Saddle joint (DN)

100-50

125-50

150-50

350-50

The size of the pipe fittings is based on the corresponding standard, For details, please consult the Baodi piping system manual or consult our company
FRP composite pipe standard： HG-3731
CPVC pipe fittings standard number： GB/T 18998.3-2003
UPVC pipe fittings standard number： GB/T 4219.2-2008
Flange connection standard： HG 20592 PN10 Flange
○： Secondary forming
◎： One-time forming
