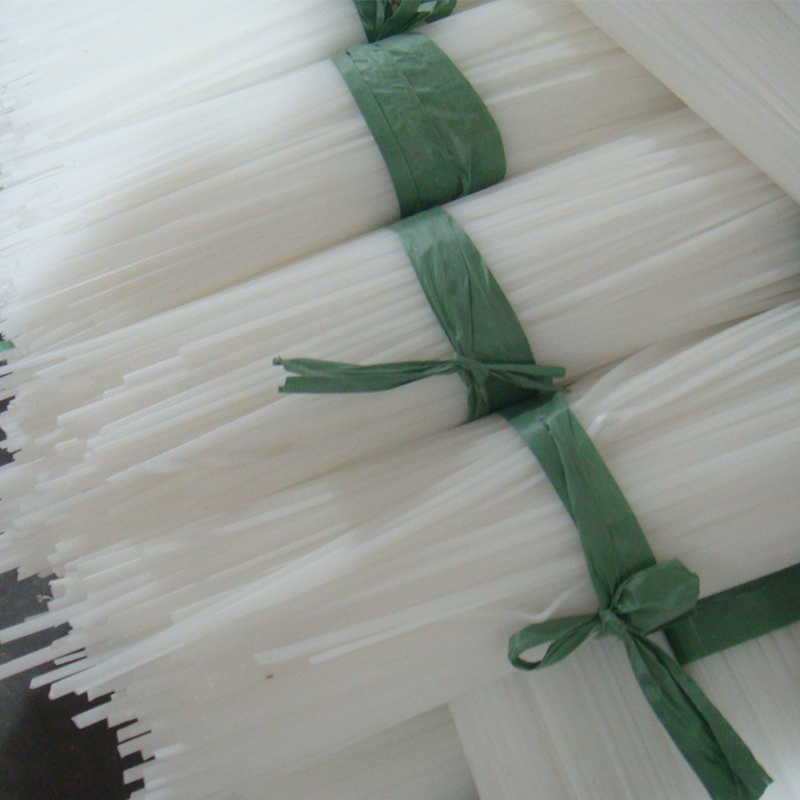

Sctew/weldig rod main connection dimension
The datas are updating. Please contact our sales for more details
|
Specifications |
Shape size(mm) |
Length (mm) |
||
|
d |
L |
H |
||
|
1.5 |
1.5 |
1 |
1.2 |
1000 |
|
2.0 |
2 |
1.5 |
1.7 |
1000 |
|
2.5 |
2.5 |
2.5 |
2.2 |
1000 |
FRPP,Screws、Nuts(GB5789-86)
The datas are updating. Please contact our sales for more details
|
M12 x 50 |
M14X90 |
|
M16 x 50 |
M16X90 |
|
M16 x 60 |
M20X100 |
|
M16 x 70 |
where RH refers to PVC |
Note: Ml4 which is 1.30 x 90 thread, the rest were T-thread.
