Features：

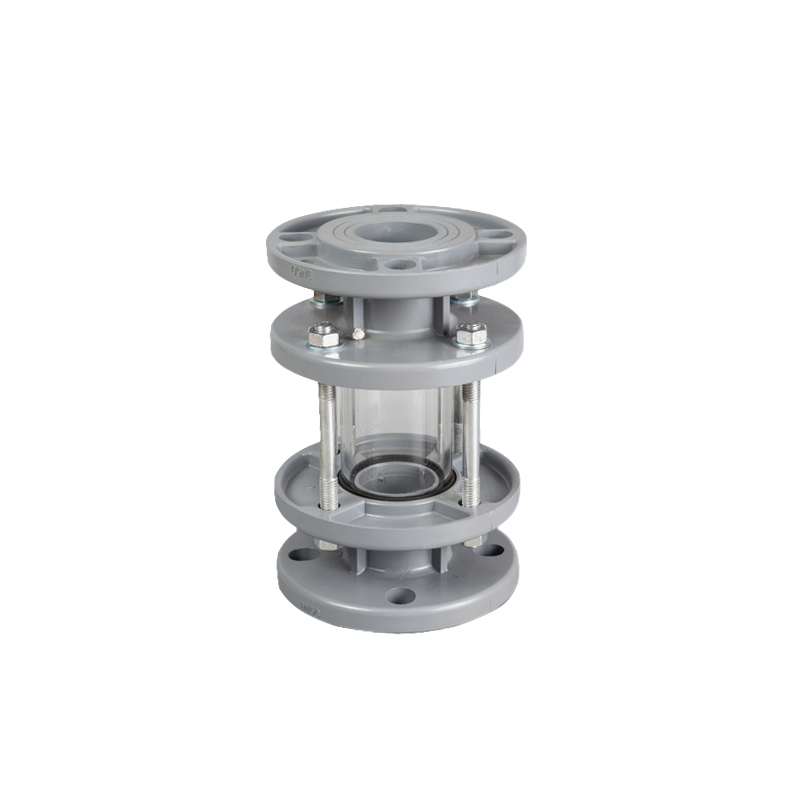

● Used to observe the color and flow state of the fluid, corrosion-resistant, light weight.
● Another enhanced version is optional, suitable for harsh environments.

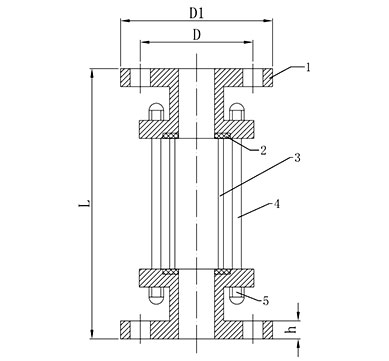

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Inspection glass flange |
FRPP,PPH,UPVC,CPVC,PVDF |
|
2 |
Tube sealing |
EPDM,FPM,PTFE |
|
3 |
Glass |
Glass |
|
4 |
Stud Bolt |
Steel, stainless steel |
|
5 |
Stud Bolt |
Steel, stainless steel |
Dimensions Table（mm）
|
DN |
D1 |
D |
L |
h |
n |
φ |
Working pressure(Mpa) |
||||||
|
DIN |
JIS |
ANSI |
HG/DIN |
JIS |
ANSI |
HG/DIN |
JIS |
ANSI |
|||||
|
25 |
115 |
85 |
90 |
79 |
235 |
16 |
4 |
4 |
4 |
14 |
15 |
16 |
0.6 |
|
32 |
135 |
100 |
100 |
89 |
235 |
16 |
4 |
4 |
4 |
18 |
19 |
16 |
0.6 |
|
40 |
145 |
110 |
105 |
98 |
235 |
16 |
4 |
4 |
4 |
18 |
19 |
16 |
0.6 |
|
50 |
160 |
125 |
120 |
121 |
235 |
16 |
4 |
4 |
4 |
18 |
19 |
19 |
0.6 |
|
65 |
180 |
145 |
140 |
140 |
235 |
18 |
4 |
4 |
4 |
18 |
19 |
19 |
0.6 |
|
80 |
195 |
160 |
150 |
152 |
235 |
18 |
8 |
8 |
4* |
18 |
19 |
19 |
0.6 |
|
100 |
215 |
180 |
175 |
190 |
235 |
20 |
8 |
8 |
8 |
18 |
19 |
19 |
0.6 |
|
125 |
245 |
210 |
210 |
216 |
315 |
20 |
8 |
8 |
8 |
18 |
19 |
22 |
0.3 |
|
150 |
280 |
240 |
240 |
241 |
370 |
20 |
8 |
8 |
8 |
22 |
23 |
22 |
0.3 |
|
200 |
340 |
295 |
290 |
298 |
385 |
25 |
8 |
12* |
8 |
22 |
23 |
22 |
0.3 |
|
250 |
405 |
350 |
355 |
362 |
420 |
28 |
12 |
12 |
12 |
22 |
25 |
26 |
0.3 |
