Features：
● Easy downstream disassembly. The unique design provides full bi-directional operation, with no need to remove the valve or drain the line when servicing or removing downstream pipework.
● Easy installation, precise matching of the valve to the centre of the pipe, no need for long bolts, reducing the effect of bolt creep on the seal.
● Thickened valve body and reinforcing ribs, no hollow design, design optimization for stress concentration, enhance the strength of the valve under harsh conditions.
● Optimised valve/stem seal design to eliminate leakage.

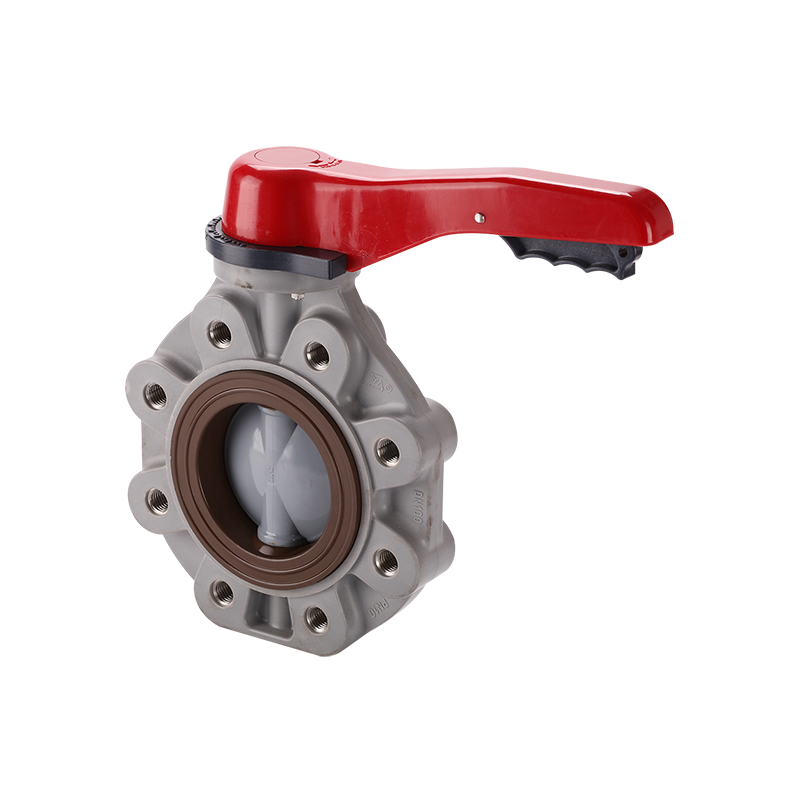

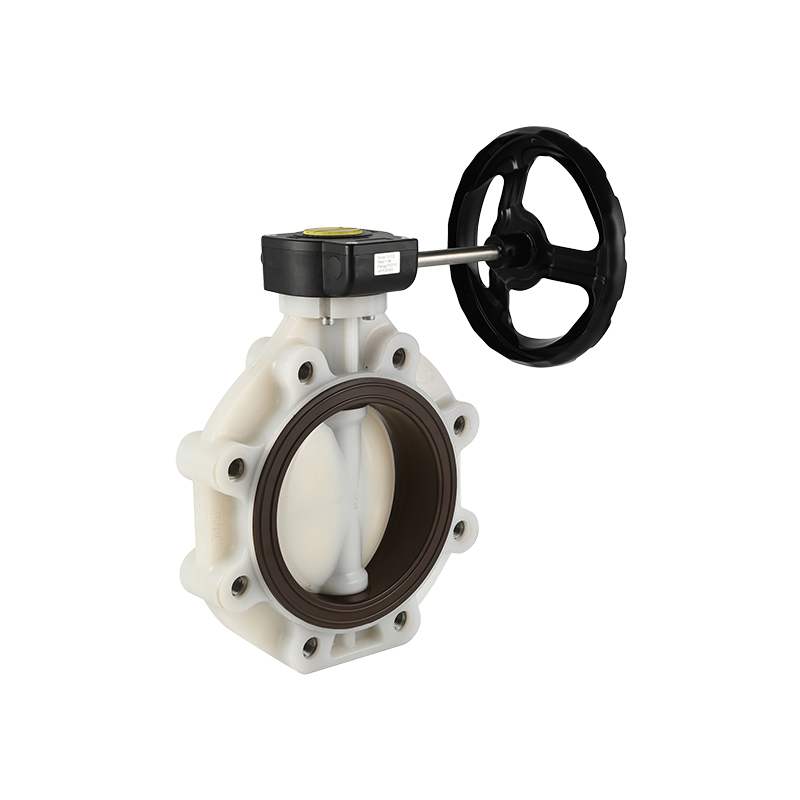

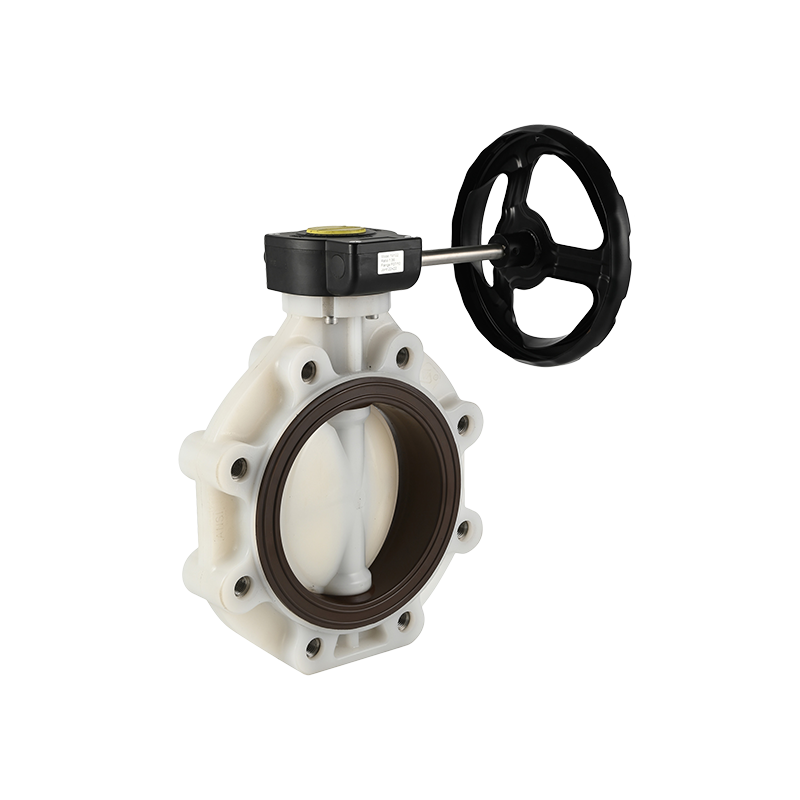

● Handle, worm gear, pneumatic and electric actuators are available.

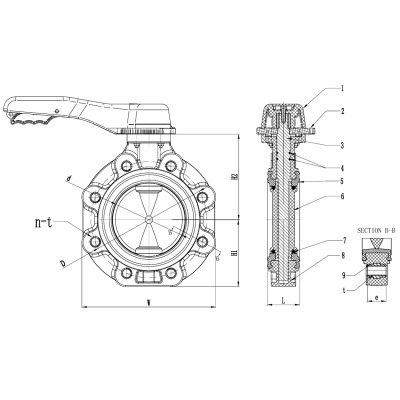

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Handle |
ABS,FRPP |
|
2 |
Handle Lever |
FRPP |
|
3 |
Locking Plate |
PPS,FRPP |
|
4 |
Stem |
Steel, stainless steel |
|
5 |
Stem O-ring |
EPDM,FPM |
|
6 |
Seat |
EPDM,FPM |
|
7 |
Disc |
FRPP,PPH,UPVC,CPVC,PVDF |
|
8 |
Disc O-ring |
EPDM,FPM |
|
9 |
Disc seal |
PTFE |
|
10 |
Body |
FRPP,PPH,UPVC,CPVC,PVDF |
|
11 |
Lug-Insert |
Steel, stainless steel |
Dimensions Table（mm）
|
DN |
d |
D |
D1 |
L |
n |
t |
Working pressure(Mpa) |
|||
|
GB/DIN |
ANSI |
GB/DIN |
ANSI |
GB/DIN |
ANSI |
|||||
|
50 |
56 |
125 |
121 |
160 |
40 |
4 |
4 |
M16 |
5/8” |
1.0 |
|
65 |
71 |
145 |
140 |
180 |
45 |
4 |
4 |
M16 |
5/8” |
1.0 |
|
80 |
85 |
160 |
152 |
195 |
46 |
8 |
4* |
M16 |
5/8” |
1.0 |
|
100 |
105 |
180 |
190 |
225 |
55 |
8 |
8 |
M16 |
5/8” |
1.0 |
|
125 |
131 |
210 |
216 |
255 |
62 |
8 |
8 |
M16 |
3/4” |
1.0 |
|
150 |
153 |
240 |
241 |
285 |
67 |
8 |
8 |
M20 |
3/4” |
1.0 |
|
200 |
210 |
295 |
298 |
340 |
85 |
8 |
8 |
M20 |
3/4” |
1.0 |
Please consult our company for physical pictures of our products
