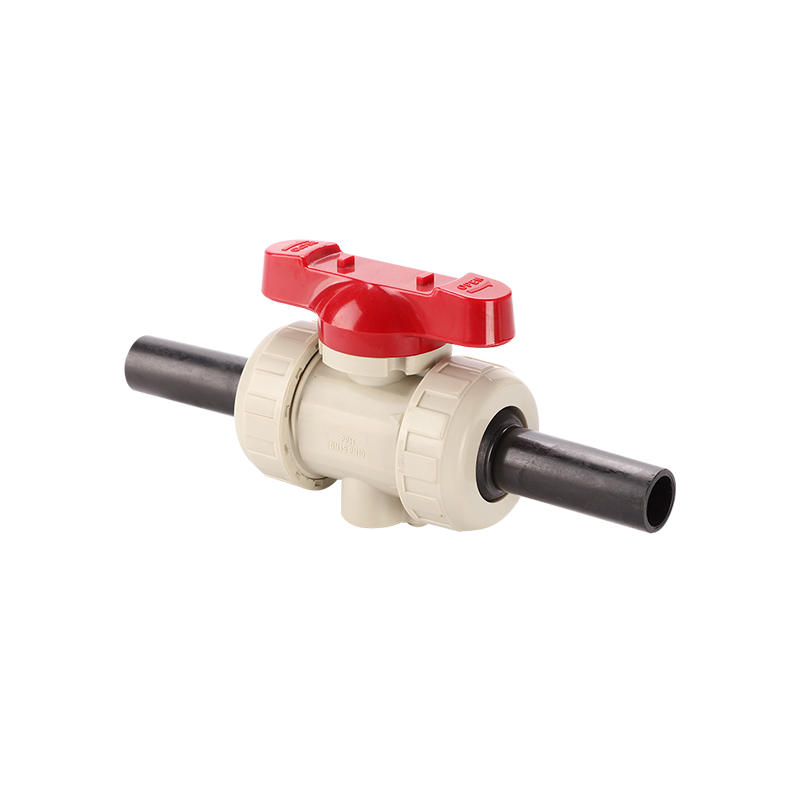

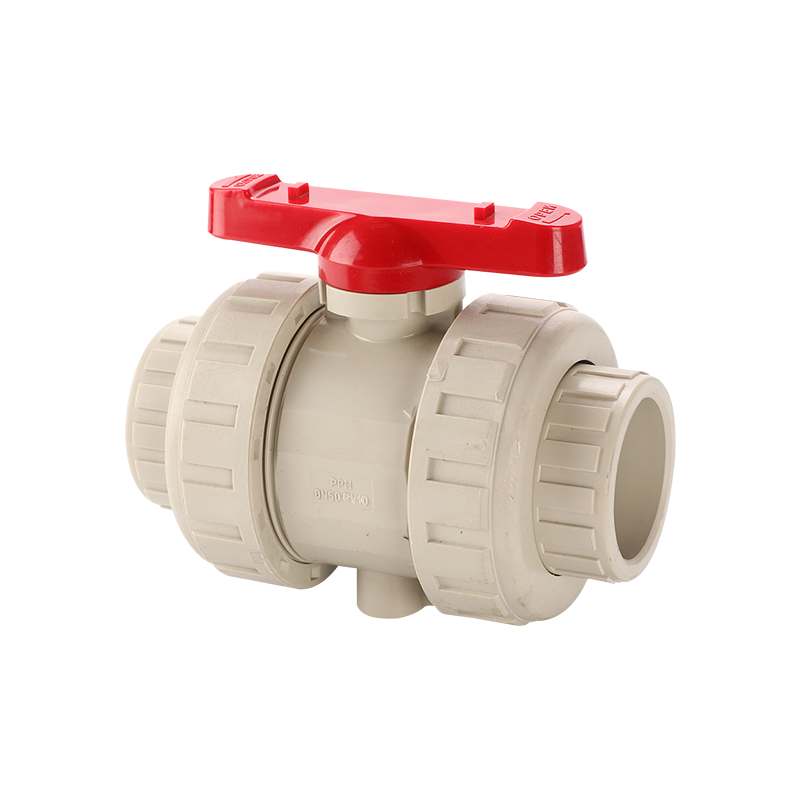

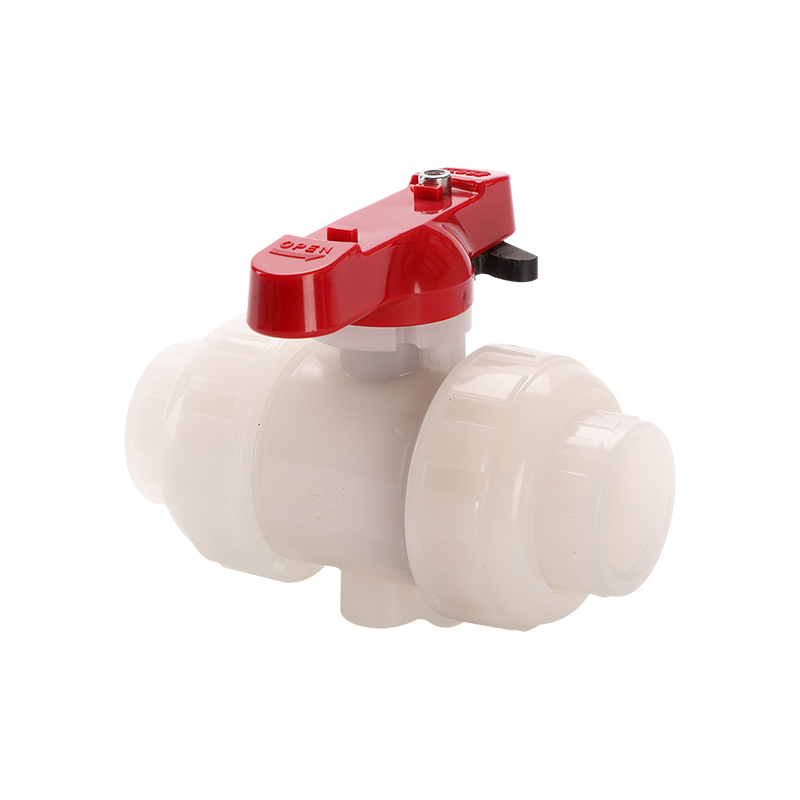

Features：
● Full flow design， PN10， Suitable for PPG and PPH materials.
● Compact structure, light installation, high cost performance.
● Please close the valve before installation.
● Using a rubber gasket instead of an inner plug, the valve torque and tightness can be adjusted by adjusting the outer nut.
● Existing cases show that due to factors such as installation errors in factory pipelines, it is easy to cause the union nut to be overstressed and leak or even be damaged. Therefore, it is not recommended to use a valve with a union connection structure above DN50.

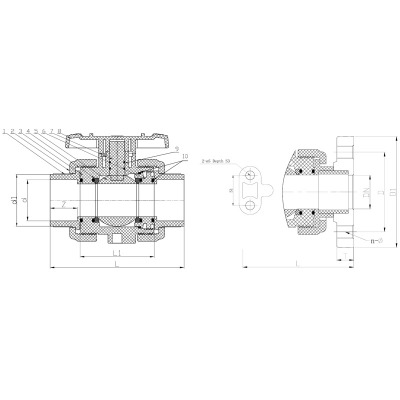

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Stem |
FRPP,PPH |
|
2 |
Handle |
ABS |
|
3 |
Union nut |
FRPP,PPH |
|
4 |
Joints |
FRPP,PPH |
|
5 |
Body |
FRPP,PPH |
|
6 |
Ball |
FRPP,PPH |
|
7 |
Ball seal |
PTFE |
|
8 |
Inside plug |
FRPP/PPH+EPDM |
|
9 |
O-ring |
EPDM |
|
10 |
O-ring |
EPDM |
|
11 |
O-ring |
EPDM |
|
12 |
Stem O-ring |
EPDM |

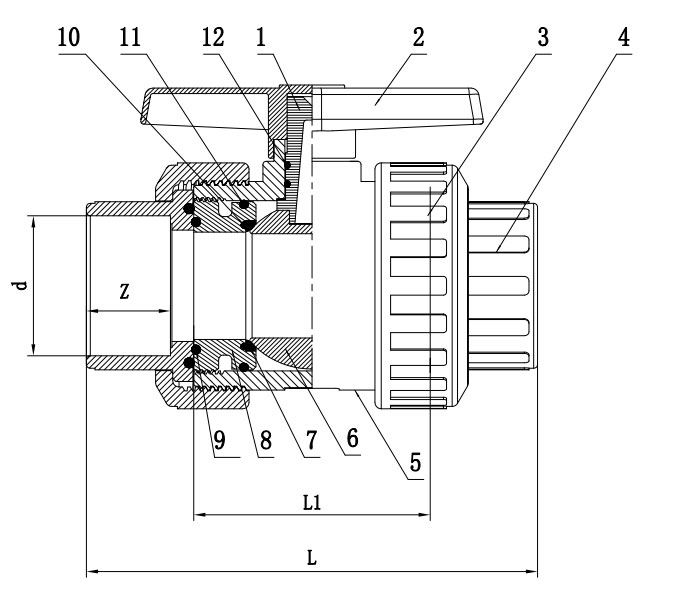

Dimensions Table（mm）
|
DN |
L1 |
d |
L |
P |
Working pressure(Mpa) |
|||||
|
Socket end |
Thread end |
|||||||||
|
HG/DIN |
JIS |
ANSI |
HG/DIN |
JIS |
ANSI |
FRPP/PPH |
||||
|
15 |
61 |
20 |
22 |
21.3 |
Rcl/2 |
PT1/2 |
NPT1/2 |
105 |
16 |
1.0 |
|
20 |
73 |
25 |
26 |
26.7 |
Rc3/4 |
PT3/4 |
NPT3/4 |
125 |
20 |
1.0 |
|
25 |
80 |
32 |
32 |
33.4 |
Rcl |
PT1 |
NPT1 |
138 |
23 |
1.0 |
|
32 |
89 |
40 |
38 |
42.2 |
Rc1-1/4 |
PT1-1/4 |
NPT1-1/4 |
150 |
28 |
1.0 |
|
40 |
101 |
50 |
48 |
48.3 |
Rc1-1/2 |
PT-1/2 |
NPT-1/2 |
172 |
32 |
1.0 |
|
50 |
107 |
63 |
60 |
60.3 |
Rc2 |
PT2 |
NPT2 |
208 |
38 |
1.0 |
|
65 |
139 |
75 |
76 |
73 |
Rc2-1/2 |
PT2-1/2 |
NPT2-1/2 |
235 |
42 |
0.6 |
|
80 |
155 |
90 |
89 |
88.9 |
Rc3 |
PT3 |
NPT3 |
268 |
45 |
0.6 |
|
100 |
168 |
110 |
114 |
114.3 |
Rc4 |
PT4 |
NPT4 |
302 |
60 |
0.6 |
