Features：
● Thicker thickness, metal connection, increased pressure resistance under high temperature conditions.
● For high-temperature and high-pressure demanding processes that require large-diameter ball valves, strong union ball valves last longer
● No installation direction requirement.
● Patent No: ZL201810846521.7

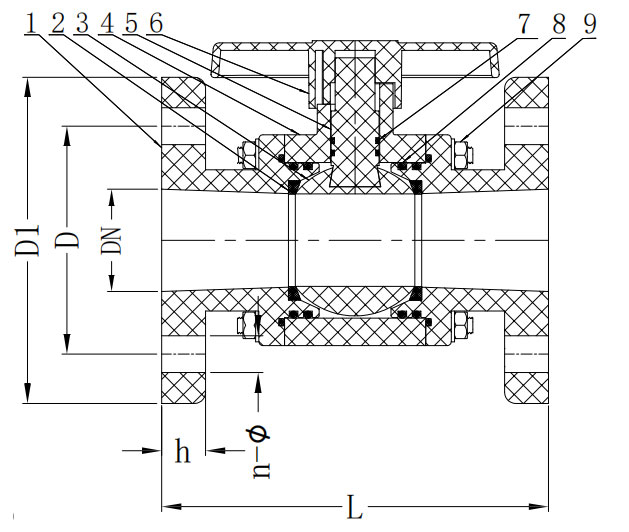

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Flange |
FRPP,PPH,CPVC,PVDF |
|
2 |
Seat seal |
EPDM/FPM+PTFE |
|
3 |
Ball |
FRPP,PPH,CPVC,PVDF |
|
4 |
Body |
FRPP,PPH,CPVC,PVDF |
|
5 |
Stem |
FRPP,PPH,CPVC,PVDF |
|
6 |
Handle |
ABS |
|
7 |
Stem O-ring |
EPDM,FPM |
|
8 |
Flange O-ring |
EPDM,FPM |
|
9 |
Bolt&Nut |
Steel, stainless steel |
Dimensions Table（mm）
|
DN |
D1 |
D |
L |
h |
n |
φ |
Working pressure(Mpa) |
||||||
|
HG/DIN |
ANSI |
HG/DIN |
ANSI |
HG/DIN |
ANSI |
HG/DIN |
ANSI |
FRPP/PPH |
UPVC/CPVC |
PVDF |
|||
|
25 |
115 |
85 |
79 |
172 |
172 |
16 |
4 |
4 |
14 |
16 |
1.0 |
1.6 |
1.6 |
|
32 |
135 |
100 |
89 |
175 |
175 |
16 |
4 |
4 |
18 |
16 |
1.0 |
1.6 |
1.6 |
|
40 |
145 |
110 |
98 |
182 |
182 |
18 |
4 |
4 |
18 |
16 |
1.0 |
1.6 |
1.6 |
|
50 |
160 |
125 |
121 |
189 |
189 |
18 |
4 |
4 |
18 |
19 |
1.0 |
1.6 |
1.6 |
|
65 |
180 |
145 |
140 |
218 |
218 |
20 |
4 |
4 |
18 |
19 |
1.0 |
1.0 |
1.0 |
|
80 |
195 |
160 |
152 |
244 |
244 |
20 |
8* |
4 |
18 |
19 |
1.0 |
1.0 |
1.0 |
|
100 |
215 |
180 |
190 |
297 |
297 |
23 |
8 |
8 |
18 |
19 |
1.0 |
1.0 |
1.0 |
|
125 |
245 |
210 |
216 |
390 |
390 |
24 |
8 |
8 |
18 |
22 |
0.8 |
1.0 |
1.0 |
|
150 |
280 |
240 |
241 |
390 |
390 |
24 |
8 |
8 |
22 |
22 |
0.8 |
1.0 |
1.0 |
