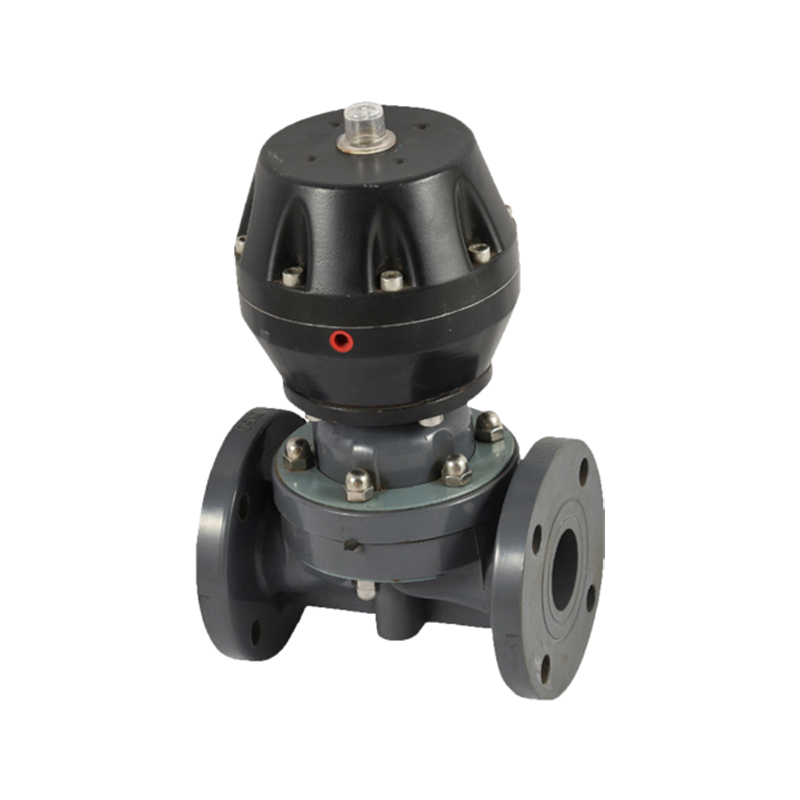

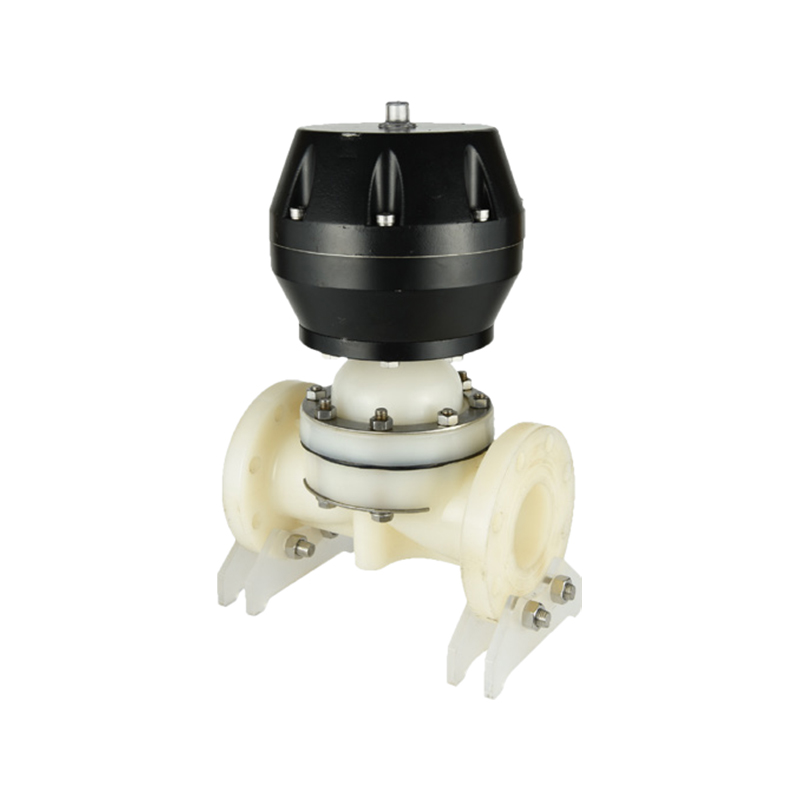

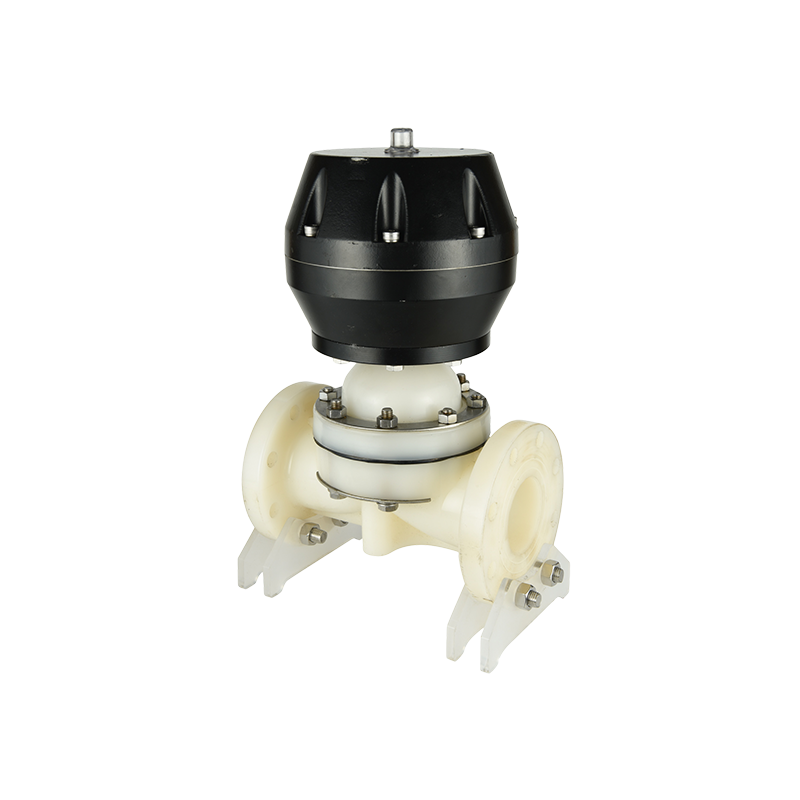

Features：
● Split structure, metal actuator, easy maintenance and installation.
● Small flow resistance, high flow capacity, and the positioner can be installed to achieve flow control.
● Only single-acting, normally closed pneumatic diaphragm valve is available, A Closing Travel Stop mechanism is standard.
Optional Parameter List
|
Body Material |
Diaphragm Material |
Connection Type |
Connection Standard |
Action |
Option |
|
FRPP |
PTFE |
Flange Type |
HG |
Air to Open PN10 |
Limit Switch |
|
PPH |
PFA |
True Union Type |
DIN |
Solenoid valve |
|
|
CPVC |
F46 |
ANSI |
Positioner |
||
|
UPVC |
EPDM |
JIS |
Filter Regulator |
||
|
PVDF |
FKM |

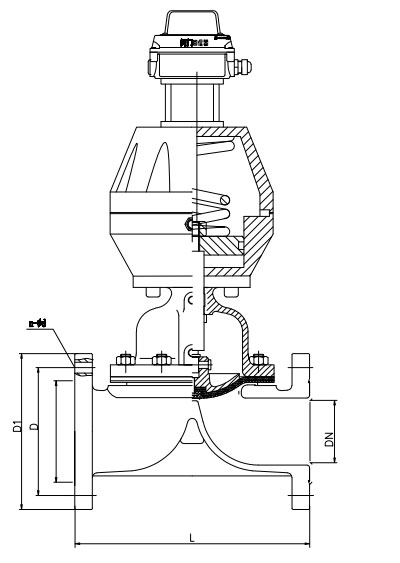

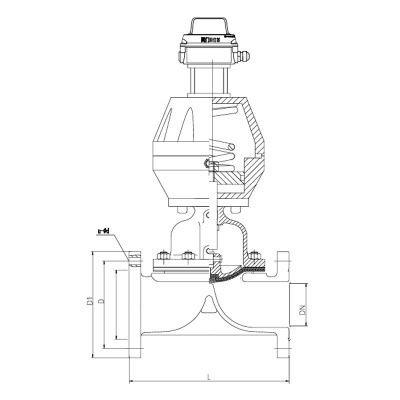

Dimensions Table （mm）
|
DN |
D |
L |
n |
φ |
||||||||
|
GB/DIN |
JIS |
ANSI |
GB/DIN |
JIS |
ANSI |
GB/DIN |
JIS |
ANSI |
GB/DIN |
JIS |
ANSI |
|
|
15 |
65 |
70 |
60 |
125 |
110 |
110 |
4 |
4 |
4 |
14 |
15 |
16 |
|
20 |
75 |
75 |
70 |
135 |
120 |
120 |
4 |
4 |
4 |
14 |
15 |
16 |
|
25 |
85 |
90 |
79 |
145/160 |
130 |
130 |
4 |
4 |
4 |
14 |
15 |
16 |
|
32 |
100 |
100 |
89 |
160/180 |
160 |
160 |
4 |
4 |
4 |
18 |
19 |
16 |
|
40 |
110 |
105 |
98 |
180 |
180 |
180 |
4 |
4 |
4 |
18 |
19 |
16 |
|
50 |
125 |
120 |
121 |
210/230 |
210 |
210 |
4 |
4 |
4 |
18 |
19 |
19 |
|
65 |
145 |
140 |
140 |
250 |
250 |
250 |
4 |
4 |
4 |
18 |
19 |
19 |
|
80 |
160 |
150 |
152 |
300 |
280 |
280 |
8 |
8 |
4* |
18 |
19 |
19 |
|
100 |
180 |
175 |
190 |
350 |
340 |
.340 |
8 |
8 |
8 |
18 |
19 |
19 |
|
125 |
210 |
210 |
216 |
400 |
410 |
410 |
8 |
8 |
8 |
18 |
19 |
22 |
|
150 |
240 |
240 |
241 |
460 |
480 |
480 |
8 |
8 |
8 |
22 |
23 |
22 |
